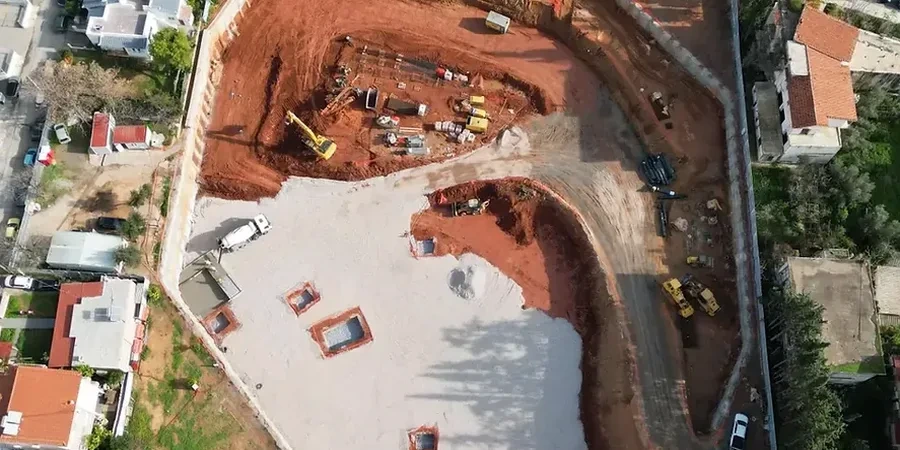

Geotechnical Design of Deep Excavations in St. Johns Newfoundland

Designing a deep excavation in St. Johns means confronting the Avalon Peninsula's complex glacial legacy head-on. The 2020 National Building Code of Canada (NBCC) and CSA A23.3 set the structural benchmark, but the real challenge lies underground. We routinely encounter dense lodgment till overlying sensitive marine clay or heavily fractured shale of the Signal Hill Formation. A design that ignores the perched groundwater common in the Southside Hills will fail during drawdown. Our approach integrates site-specific parameters into every stage of the shoring analysis, from soldier pile and lagging systems to secant pile cutoff walls. Before finalizing the excavation support, we often verify soil strength at depth with the SPT drilling method to correlate N-values with undrained shear strength in the till and clay units.

In St. Johns, a deep excavation design succeeds or fails based on how accurately it models the perched water in fractured Signal Hill shale.

Our service areas

How we work

St. Johns endures a harsh North Atlantic climate where freeze-thaw cycles and persistent fog alter excavation behavior. Water infiltrates fractures in the sandstone and shale bedrock, generating hydrostatic pressures that standard earth pressure theories underestimate. We design for this reality. Our models account for the slickensided surfaces within the glacial till that reduce passive resistance. For urban sites near Duckworth Street or Water Street, minimizing ground loss is non-negotiable. We use beam-spring analysis and finite element software to predict wall deflection adjacent to heritage structures. When the stratigraphy suggests interbedded soft clay, the design is cross-checked with data from a CPT test to refine the soil profile and detect thin drainage layers invisible in borehole logs.

Geotechnical Design of Deep Excavations in St. Johns Newfoundland — Technical reference — St. Johns Newfoundland

Local geotechnical context

A common error in St. Johns is treating the glacial till as an impermeable layer and omitting a solid dewatering plan. Excavations near the harbour frequently hit artesian conditions in the underlying fractured bedrock. Without a deep cutoff or depressurization wells, base heave occurs rapidly. We have seen contractors lose weeks of progress because the initial design did not account for the high RQD variability in the shale: a tight bedrock socket in one corner can become open-jointed rubble three meters away. Another recurring failure is designing tieback anchors for the weathered zone without corrosion protection suitable for the saline groundwater intrusion common near Quidi Vidi.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Explanatory video

Relevant standards

NBCC 2020 (National Building Code of Canada), CSA A23.3 (Design of Concrete Structures), CFEM (Canadian Foundation Engineering Manual, 4th Ed.), ASTM D1586 (SPT) and ASTM D5778 (CPT)

Typical values

Parameter	Typical value
Typical excavation depth	6 to 22 m below grade
Dominant soil types	Glacial till, marine clay, shale bedrock
Design groundwater level	0.5 to 2.0 m below surface (perched)
Lateral earth pressure	Ka based on phi' 28-36 deg (till); total stress for clay
Wall system options	Soldier pile & lagging, secant pile, soil nail
Bedrock anchor capacity	100 to 400 kN per strand (shale dependent)
Seismic load factor	NBCC 2020, Site Class C or D per NBCC Table 4.1.8.4.A
Deflection limit (adjacent structure)	H/500 or 25 mm, whichever is less

Questions and answers

What is the typical cost range for a geotechnical excavation design in St. Johns?

The fee for a complete deep excavation design package, including shoring analysis and dewatering recommendations, typically ranges from CA$2,570 to CA$10,540. The final amount depends on excavation depth, wall type, and whether the site is on the till plain or the lower shale slopes.

Which code governs deep excavation design in Newfoundland and Labrador?

The National Building Code of Canada (NBCC 2020) is the primary standard, with structural concrete for shoring walls governed by CSA A23.3. Geotechnical aspects follow the methods outlined in the Canadian Foundation Engineering Manual (CFEM), 4th Edition.

What investigation is required before designing a shoring wall for St. Johns glacial till?

You need a site-specific investigation that includes mud-rotary boreholes with SPT testing through the till and into competent bedrock. If marine clay is present, CPT soundings are essential to measure undrained shear strength. Piezometer installation is mandatory to map the perched water table.
